Fully Automatic ATF Exchanger (diffusion)AUTO 2010PDF Down

Specifications
Size Width 535mm Hose Length IN Hose 2500mm
Depth 510mm OUT Hose 2500mm
Height 1100mm Weight 100kg
Control Unit PCB Control Board
Accuracy ± 200cc
Power AC 220V / 60Hz or 230V / 50Hz
Motor ¼ HP Motor
Pump Trochoid Pump
Capacity
Tank Capacity New ATF oil 22L
Waste ATF oil 22L or Drain Tank

Use Info

A

Our machine will automatically calculate the exact volume of old and new fluid to be exchanged.

B

This machine can measure the oil temperature without having to place a scanner inside the equipment.

C

The old fluid can be drained directly to the outside drainer during the exchange.

D

Our machine can handle many different types of fluids to satisfy the needs of all car manufacturers.

E

Our machine is equipped with a backlight behind the sight glass so that you can easily see the color of the fluids during the process.

F

If you misconnect the hoses the IN/OUT puts within our machine then you can quickly reverse the flow of the fluid to the right way by change this valve.

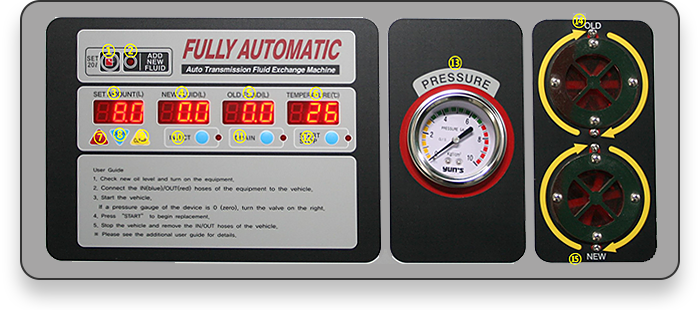

Functional Description of Operating Panel

01. SET 20ℓ

When putting in a new pail, you need to set the desired amount of new fluid.
Then you can check the current fluid amount in the new oil tank.

02. ADD NEW FLUID

The light will turn on if you set the amount of new oil to be added to a value greater than what is currently in the machine.

03. SET AMOUNT

The amount of fluid to be exchanged will be shown in the display labeled 'SET AMOUNT'.

04. NEW FLUID

The amount of new fluid will be shown within the display labeled 'NEW FLUID' during the exchange process.

05. OLD FLUID

The amount of old fluid will be shown within the display labeled 'OLD FLUID' during the exchange process.

06. TEMPERATURE

The oil temperature will be shown within the display labeled 'TEMPERATURE' during the exchange process.

07. UP

Button for setting up the amount of oil for exchange.

08. DOWN

Button for setting down the amount of oil for exchange.

09. CLEAR

Press to reset 'NEW FLUID' AND 'OLD FLUID' settings to zero.

10. NEW FLUID INJECTION

Press to inject new fluid into vehicle.

11. OLD FLUID DISCHARGE

Press to discharge used fluid from vehicle.

12. START & STOP

Press to start, pause and continue the oil exchange process.

13. Pressure Gauge

Gauge for the transmission pressure.

14. NEW OIL SIGHT GLASS

Window for old oil.

15. OLD OIL SIGHT GLASS

Window for new oil.
